Atomos Ninja TX 5.2" HDMI / 12G-SDI Wi-Fi Monitor & Recorder

Advanced Design & Performance

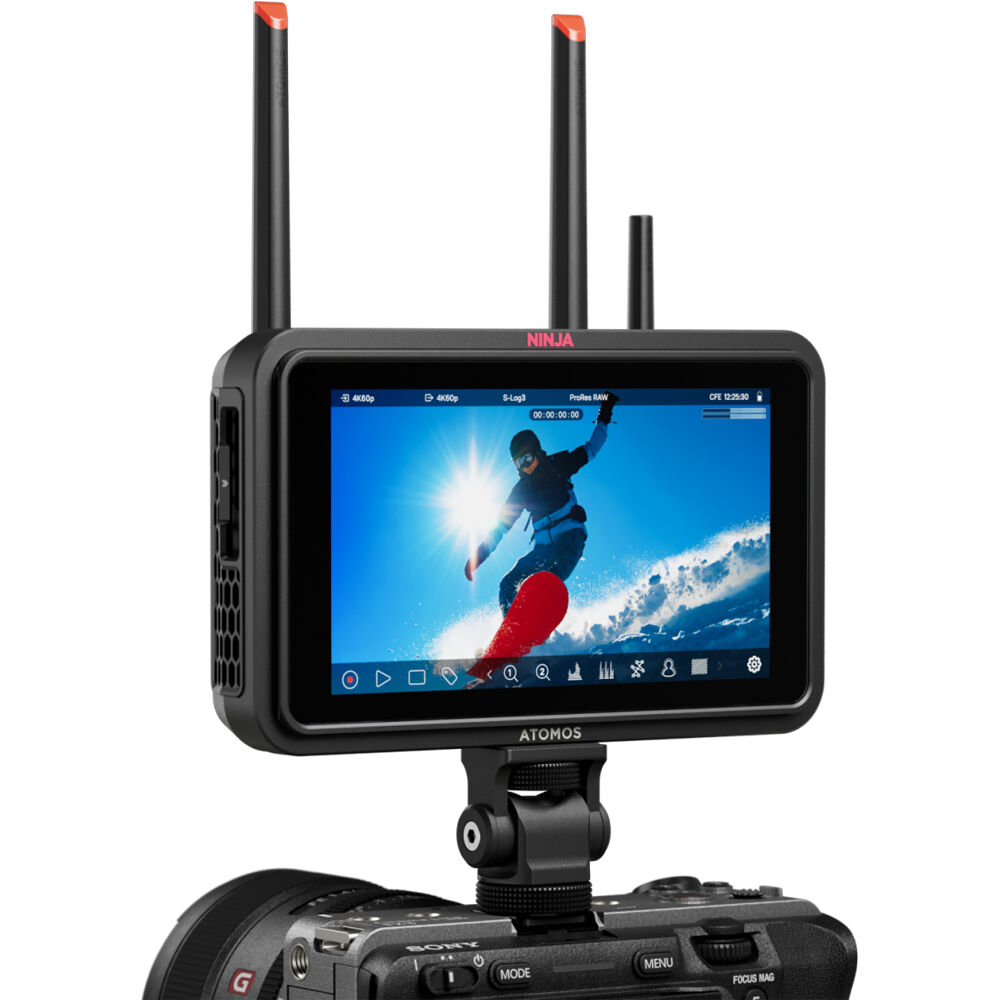

The Atomos Ninja TX is a fully reengineered 5.2-inch on-camera monitor and recorder built for modern filmmakers and content creators. While it maintains the classic Ninja series design, it introduces powerful upgrades that enhance workflow efficiency and production quality.

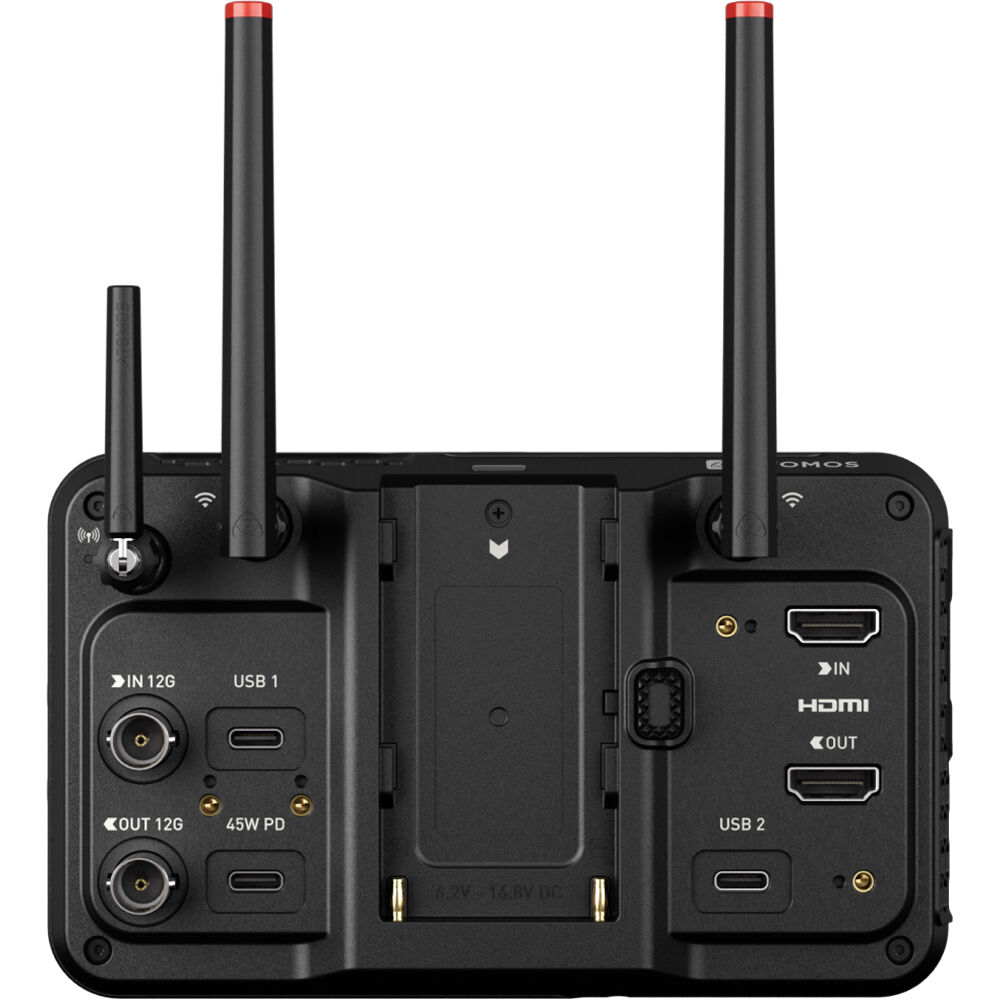

To begin with, it offers both 12G-SDI and HDMI 2.0 input and output, ensuring wide compatibility with professional cinema cameras and mirrorless systems. As a result, users can integrate it seamlessly into various production setups. Additionally, cross conversion between HDMI and 12G-SDI increases flexibility on set.

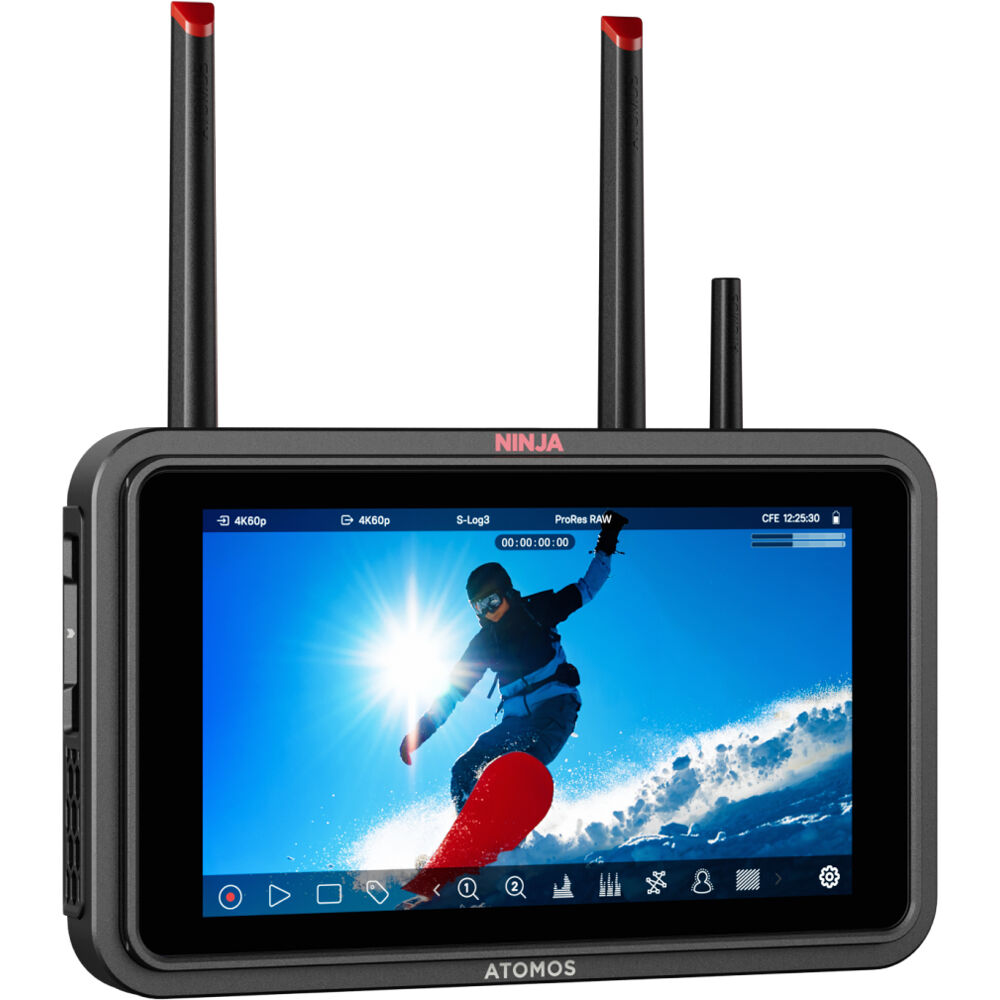

Bright HDR Touchscreen Display

The 5.2-inch IPS touchscreen features a 1920 x 1080 resolution and an impressive 1500 cd/m² brightness level. Therefore, users can monitor footage clearly even in direct sunlight.

Moreover, the display supports HDR monitoring, Rec.709 color gamut, and 8/10-bit color processing, ensuring accurate color representation and reliable exposure control.

8K RAW Recording & Storage Options

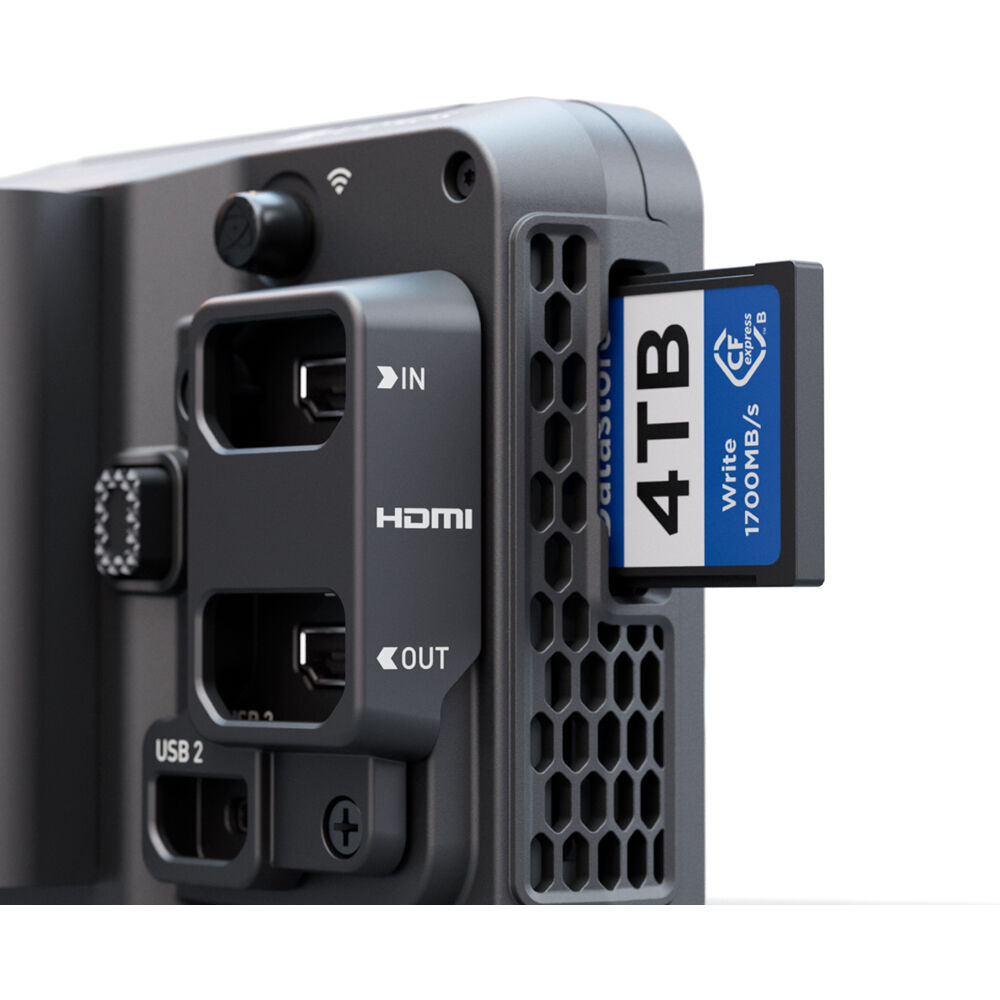

The Ninja TX supports up to 8K30 RAW recording via HDMI, along with 4K and high frame rate formats. Furthermore, users can record directly to CFexpress Type B media or through USB-C for fast and stable data transfer.

Not only does it support ProRes RAW, DNx, and H.265 codecs, but it also includes them without requiring additional paid upgrades.

Connectivity & Camera to Cloud

Built-in Wi-Fi enables wireless streaming and direct uploads. In addition, the integrated Camera to Cloud (C2C) workflow allows creators to upload files directly to ATOMOSphere, Frame.io, or Dropbox. As a result, editors can begin post-production almost immediately.

The Ninja TX also includes a built-in NDI/HX3 license, allowing it to operate as both an NDI source and receiver within network-based .

Timecode & Professional Monitoring Tools

For multi-camera productions, the Ninja TX supports AirGlu RF and Bluetooth timecode synchronization. Therefore, precise syncing across cameras and audio devices becomes simple and reliable.

Additionally, it offers professional monitoring tools such as waveform, RGB parade, vectorscope, false color (including EL Zone), focus peaking, zebras, frame guides, grid overlays, and 3D LUT support. Consequently, filmmakers maintain full creative control over exposure,

Power & Build

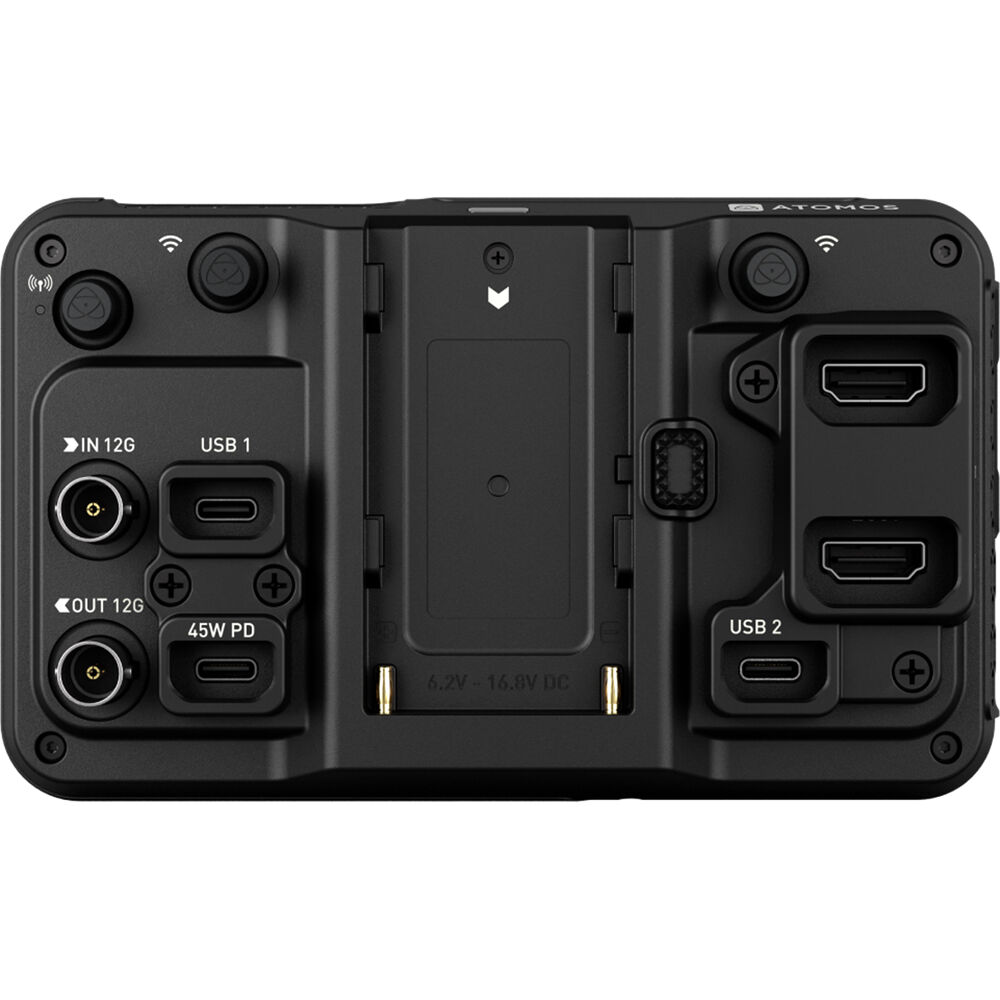

The monitor supports NP-F L-series batteries for portable shooting. Moreover, it accepts 30W USB-C PD power delivery for studio or continuous operation setups. Its compact and lightweight design makes it suitable for handheld, gimbal, and rig-based productions.

Conclusion

Overall, the Atomos Ninja TX combines advanced recording capabilities, professional monitoring tools, and modern wireless connectivity in a compact and powerful form factor. Therefore, it stands as a reliable solution for cinema production, broadcast workflows, and high-end content creation.
